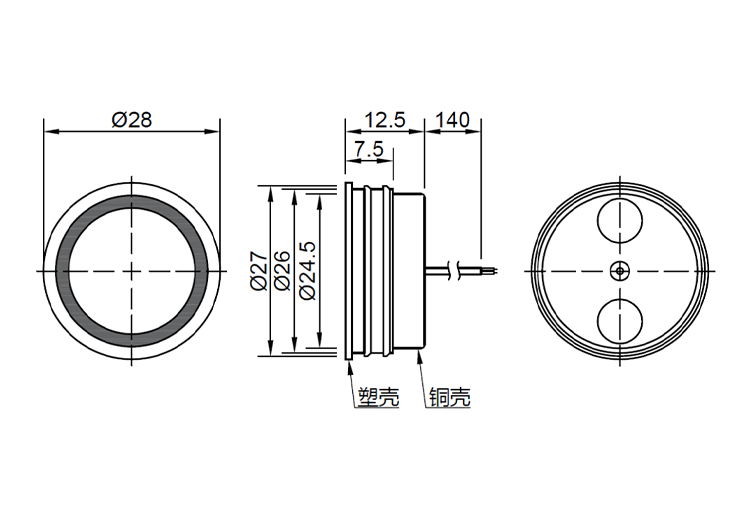

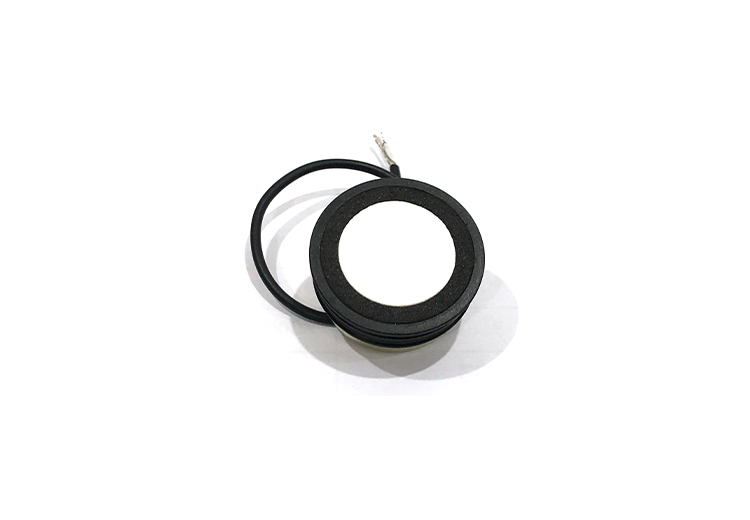

| Product number | NU125E27TR-2 |
| Product category | High frequency |
| Product Category | 50~<200KHz |
| Center frequency | 125.0KHz±2% |
| Sensitivity | --- |
| Static capacitance | 1250pf±20% |
| Resolution | 1mm |
| Aftershock | 800us Max |
| Direction angle (-6dB) | 12±2° |
| Maximum input voltage (pulse) | 400Vp-p |
| Operating temperature | -20℃~+80℃ |
| Storage temperature | -30℃~+85℃ |
| Shell material | ABS |
